Scott

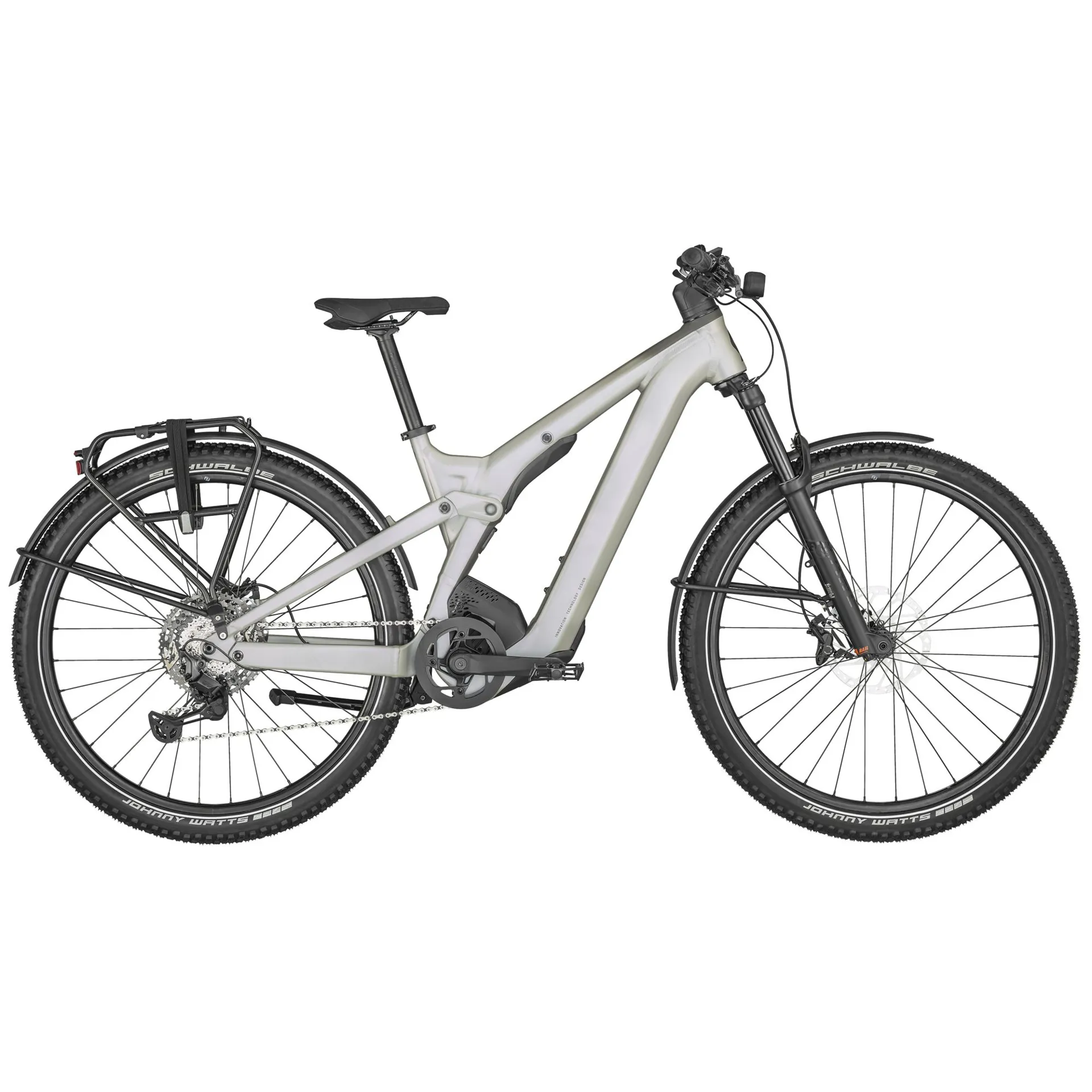

Scott Axis eRIDE FS 10 Electric Mountain Bike in Grey

£6,399.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Scott Axis eRIDE FS 10 Electric Mountain Bike in Grey

Season:2024

Brand:Scott

Code:290631

What we say
The Scott Sub Active eRIDE 10 Electric Hybrid Bike is aimed at urban commuters and recreational riders who seek a comfortable, efficient, and eco-friendly mode of transportation. Its powerful Bosch motor, integrated battery, and user-friendly design make it perfect for daily commutes and leisurely rides through city streets and bike paths.

What they say
The Axis eRIDE FS 10 is the ultimate bike for all terrain.

With an unprecedented level of integration and its unique design, the Axis will push you to your own limits; and thanks to the full suspension and the Bosch Smart System, it is the missing link between touring and mountain e-biking. One bike to look after everything!

Features:
  • Axis EVO Alloy Frame
  • Integrated Rear Shock FOX 140mm
  • Front suspension: FOX Awl Stealth 140mm
  • Bosch Performance CX, 750Wh battery
  • Shimano Deore XT 11 Speed Linkglide
  • Schwalbe Johnny Watts 29” Wired
  • Fenders, kickstand, lights, rack

SCOTT Sizing

Please note the following size guides are a general overview and represent a rough guide to SCOTT Bikes sizing. Each bike may deviate from these figures, please refer to the specific geometry details for more precise sizing.

Technical Information
  • FRAME
    Virtual 4 link kinematic VLK, 29" / Boost 148x12mm, 140mm travel / Bosch Integrated Battery, internal cable routing
  • FORK
    FOX AWL / Tapered / S-XL 29" / 140mm Travel / Stealth / Remote Lock Out
  • REAR SHOCK
    FOX Float eRIDE Trunnion 205x55mm
  • REMOTE SYSTEM
    SCOTT TwinLoc Remote
  • DRIVE UNIT
    Bosch Performance CX BES3
  • BATTERY
    PowerTube 750Wh
  • DISPLAY
    Kiox 300 Display
  • CHARGER
    4A Charger
  • REAR DERAILLEUR
    Shimano RD M8130SGS Linkgilde / 11 Speed
  • FRONT DERAILLEUR
    SCOTT Chainguide
  • SHIFTERS
    Shimano XT RD M8130SGS Linkgilde / 11 Speed
  • CRANKSET
    FSA CK-745 IS GEN4 MTB 170mm
  • CHAINRING
    38T FSA Mega Tooth Boost Spider
  • CHAIN
    KMC E11S
  • CASSETTE
    Shimano CS-LG600-11 11-50T 11S
  • BRAKES
    Shimano BR-MT520 4 Piston
  • ROTOR
    203/F SM-RT64 CL and 203/R RT-EM600 CL rotor
  • HANDLEBAR
    Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise, Syncros Lock On Grip
  • H'STEM
    Syncros FL3.0 with front Light mount and Kiox 300 mount
  • SEATPOST
    Syncros FL3.0 / 31.6
  • SEAT
    Syncros Capilano
  • HEADSET
    Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm
  • HUB (FRONT)
    Formula CL-811 / 15x110mm
  • HUB (REAR)
    Formula MSC-148S / Boost 12x148mm
  • SPOKES
    Sapim double butted
  • RIMS
    Syncros MAXX Disc / 32H, Tubeless ready
  • FRONT TIRE
    Schwalbe Johnny Watts 29x2.35" Wired
  • REAR TIRE
    Schwalbe Johnny Watts 29x2.35" Wired
  • LIGHTS
    Supernova integrated M99 mini Pure-25 / 600 Lumen front light, Rear Supernova Taillight
  • RACK
    Axis EVO by Racktime SnapIt 2.0 15KG
  • PEDALS
    VP VPE-506
  • EXTRAS
    Wingee alloy profile Fender / Ursus Kickstand
  • APPROX WEIGHTS IN KG
    28
  • APPROX WEIGHTS IN LBS
    61.73
  • MAX. SYSTEM WEIGHT
    128kg
Sizing Information
SMLXL
Ahead tube angle64.5 °65.0 °65.0 °65.0 °
Bhead tube length120.0 mm125.0 mm135.0 mm145.0 mm
Ctop tube horizontal579.4 mm595.0 mm625.6 mm656.4 mm
Dstandover height759.0 mm759.0 mm759.0 mm759.0 mm
EBB offset-30.0 mm-30.0 mm-30.0 mm-30.0 mm
FBB height340.0 mm340.0 mm340.0 mm340.0 mm
Gwheel base1,238.8 mm1,248.7 mm1,280.7 mm1,312.5 mm
HBB center to toptube center
IBB center to top of seattube410.5 mm440.5 mm470.4 mm500.4 mm
Jseat angle77.0 °76.9 °76.9 °76.8 °
Kchainstay461.0 mm461.0 mm461.0 mm461.0 mm
Lreach432.7 mm445.8 mm473.6 mm501.2 mm
Mstack635.0 mm642.5 mm651.6 mm660.6 mm
Nstem length60.0 mm60.0 mm60.0 mm60.0 mm
0trail119.7 mm116.0 mm116.0 mm116.0 mm
PFork length561.6 mm561.6 mm561.6 mm561.6 mm
QMaximum Seatpost Insertion245.0 mm265.0 mm300.0 mm320.0 mm
RCrank Length170.0 mm175.0 mm175.0 mm175.0 mm
