Pivot Cycles

Pivot Cycles Firebird - Pro XT/XTR - DHX2 Coil - Orange - Large - Limited

£8,950.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

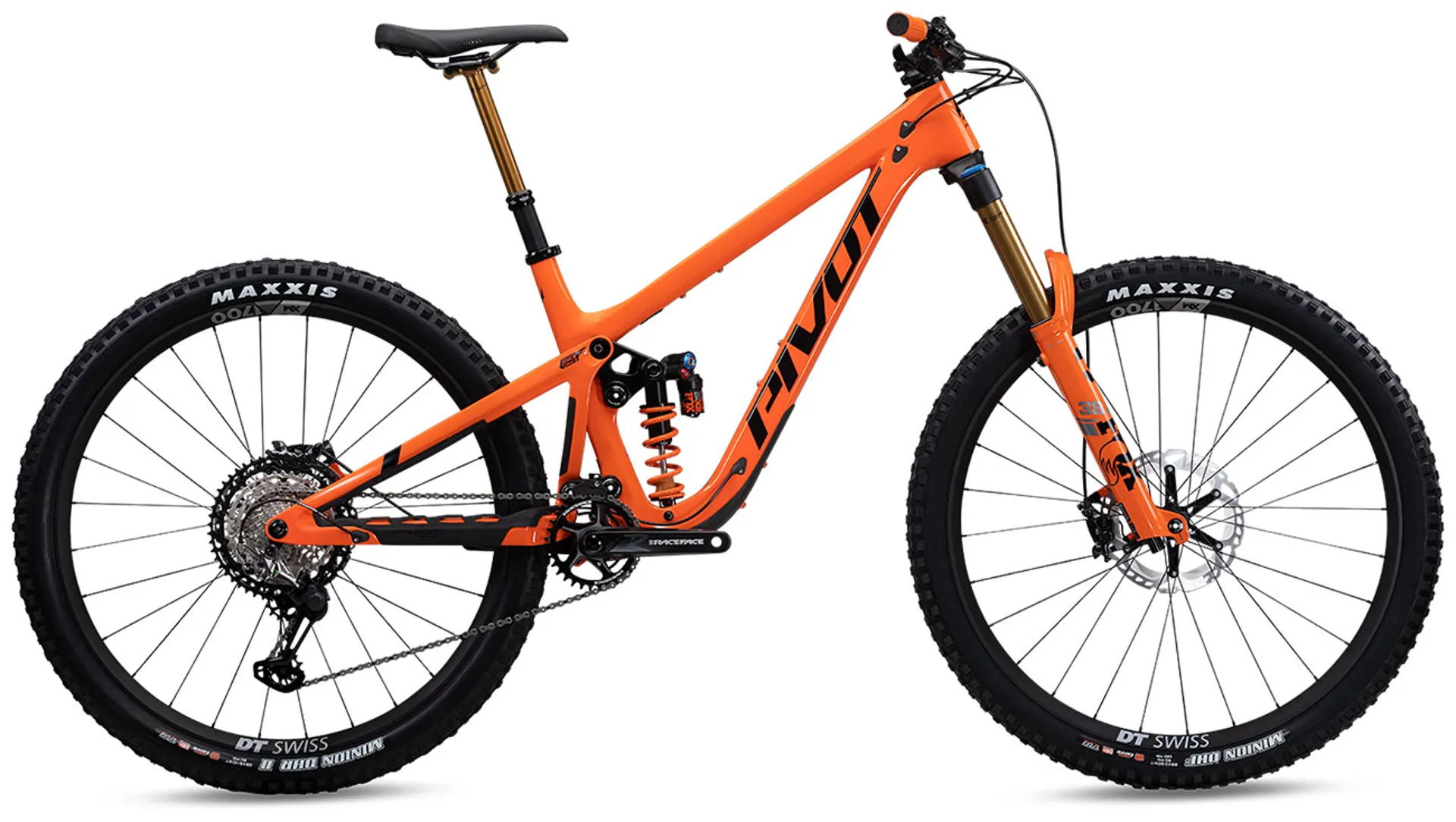

Pivot Cycles Firebird - Pro XT/XTR - DHX2 Coil - Orange - Large - Limited

Season:2023

Brand:Pivot Cycles

Code:P-BIKE-004RS

We say: The Firebird is the definitive Enduro race bike. Light, strong and active - but with great platform support for winching up that 60 minute climb for your next 4 minute blast down through the trees...

Of course you don't have to be racing. The Firebird is a very nice place to be whether your picking a nadgery line down a steep and rooty off-piste in Hamsterley or Guisborough, or opening it up on a more open trail. Beautifully finished, inside and out, with lovely features. UDH drop outs, mounts for Fox Live valve shocks if you want them - the other thing it doesn't have is in frame storage, but you know, Camelbak... ;)

Fox Factory 38s with Grip 2 damper, Fox Factory Transfer post and DT Swiss XM1700 wheels. It's a great package. This one has a Fox Float X2 shock.

PRODUCT DETAILS

Get everything you need to know about the Firebird.

  • Pivot’s full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 5’2” to 6’9” has a bike that feels perfect and performs at the optimum level for their size.
  • Long-and-low geometry for a confident, and size specific chainstay lengths refine the EWS Podium performance for different sized riders.
  • Phoenix DH-inspired longer dw-link® maximizes the Firebird’s rearward wheel-path for erasing square edge bumps and maximizing control.
  • 165mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance.
  • Equipped with a 44mm offset 170mm-travel Fox Factory and Performance Series 38 FIT Grip2 forks.
  • Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options.
  • Compatible with both 29” and 27.5” wheel sizes without compromise thanks to the adjustable geometry for 29” 27.5” or MX wheel setups.
  • Fits tires up to 29x2.6” or 27.5x2.8” wide.
  • 12 x 157mm Super Boost Plus rear spacing adds stiffness and control.
  • 31.6mm size seatpost match with the Firebird’s short seat tube with deep insertions for longer travel posts.
  • Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world.
  • 1.5” headtube provides increased front-end stiffness and tracking.
  • Hassle-free, full-length, internal cable routing.
  • All sizes fit a water bottle inside the front triangle.
  • Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame.
  • Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup.
  • Adjustable geometry with a flip chip upper link mount
SMMDLGXL
ASeat Tube Length (C-T)37.5 cm41 cm44 cm47 cm
BTop Tube Length59.8 cm62.4 cm64.1 cm66.5 cm
CHead Tube Length9.5 cm10.8 cm11.8 cm12.8 cm
DHead Tube Angle64.0°64.0°64.0°64.0°
ESeat Tube Angle (Eff.)76.0°76.5°77.0°77.0°
FChainstay Length43.1 cm43.4 cm43.8 cm44.5 cm
GBottom Bracket Height35 cm35 cm35 cm35 cm
HBottom Bracket Drop2 cm2 cm2 cm2 cm
IStandover66.2 cm67.2 cm69.3 cm70.4 cm
Wheelbase120.7 cm123.9 cm126.7 cm130 cm
Reach44.5 cm46.8 cm48.8 cm51 cm
Stack61.5 cm62.7 cm63.6 cm64.5 cm
