Pivot has put its focus on weight, refined suspension with the dw-link, and crisp handling with the perfect blend of power assisted acceleration and climbing performance to get you up the mountain as fast as you can get down it.
Pivot has put its focus on weight, refined suspension with the dw-link, and crisp handling with the perfect blend of power assisted acceleration and climbing performance to get you up the mountain as fast as you can get down it.
Pivot Cycles

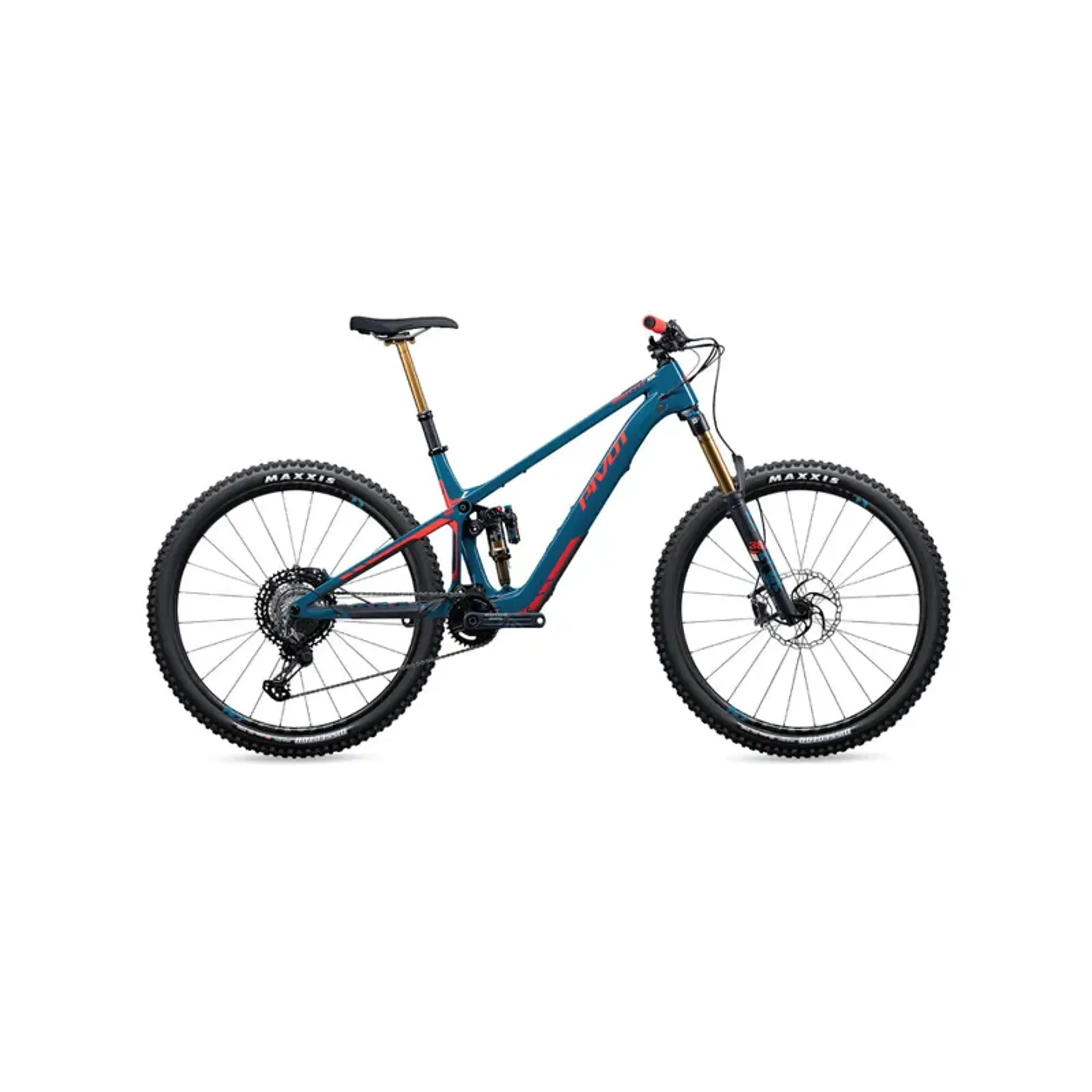

Pivot Cycles Shuttle SL 29 Team XTR eMountain Bike in Blue Denim

£12,000.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Pivot Cycles Shuttle SL 29 Team XTR eMountain Bike in Blue Denim

Season:2022

Brand:Pivot Cycles

Code:PCBSHUTTLESLTEAMBLUBLU

In the Shuttle SL, Pivot has put its focus on weight, refined suspension with the dw-link, and crisp handling that gives the feel of Pivot’s best trail bikes combined with the perfect blend of power assisted acceleration and climbing performance to get you up the mountain as fast as you can get down it.

Features:

  • Sleek Full Carbon Hollow Core Frame
  • Seamless Integrated FAZUA Ride 60 Drive System
  • Progressive Trail Geometry
  • Flip Chip Geometry Customization
  • Size Specific Chainstay Lengths
  • 130mm Travel DW-Link Suspension
  • Trunnion Mounted Fox Float X Rear Shock
  • Fox Factory E-MTB 36 29" 44mm Offset GRIP2 150mm
  • Trail gripping Maxxis Dissector Tires
  • Full-size water bottle fits inside the front triangle
  • Pivot's Cable Port System
  • 60 Nm of Torque/ 450 Watts Peak Power
  • Integrated 430 Watt/Hour Battery
  • Superlight System 9.25lbs (4.2kg)
  • 3 Assist Levels + Boost Mode
  • Drag-free pedaling without assist
  • Magnetic Charging Port & Cover
  • Shimano XTR SGS 12-Speed Rear Derailleur
  • Shimano XTR M9100 ISPEC EV 12-Speed Shifter
  • Shimano XTR M9100 10-51t Cassette
  • Shimano CN-M9100 12-Speed Chain
  • Rotor EKAPIC E-MTB 32t Crankset
  • Shimano XTR M9120 4-piston Brakes
  • Galfer 203mm/180mm Rotors
  • Pheonix Race Low Rise Aluminum 780mm Handlebars
  • Pheonix Team Enduro/Trail Stem
  • Fox Factory Series Seatpost 150mm (SM) – 175mm (MD-LG) – 200mm (XL)
  • Phoenix WTB Volt Team Saddle
  • Reynolds Blacklabel 309/289 XC w/Industry Nice Hydra Hub 30mm F 28mmR – 29” / 15x110 F /12x157 R
  • Maxxis Dissector 29” x 2.4” WT, TR, 3C, EXO Maxxterra front and Rear Tyres

To ensure the best sizing, we recommend that you visit us to get a professional fit and refer to our geometry chart to check your measurements. We can, however, provide a rough guideline to get you started. These recommendations are based on our experience, athlete preference and customer feedback:

Small: 5'2" – 5'8"
Medium: 5'7" – 6'0"
Large: 5'10" – 6'2'
X-Large: 6'1" +

We suggest that you pick your size based on your riding style. The Shuttle SL features progressive long reach geometry with both short seat tube and head tube measurements per size – this geometry means that most riders can go up or down a size and should base their choice on riding-style, reach and stem length preferences. Be sure to also consult the Shuttle SL dropper post fit guide when making your selection.



(in mm)SMLXL
Reach435465478500
Stack610626630642
Top Tube (effective)598632646660
Seat Tube C-T368394432470
Head Angle65656565
Seat Angle76767676.8
Head Tube95112117130
Chainstay432432434438
Wheelbase1186122312401272
Standover665668674678
BB Drop27272727
BB Height347347347347
Fork Length (A2C)150150150150
Wheel Size29292929
Dropper Post Travel180180210210
Stem Length45454545
Rear Travel132132132132

Technical Information
  • Sleek Full Carbon Hollow Core Frame
  • Seamless Integrated FAZUA Ride 60 Drive System
  • Progressive Trail Geometry
  • Flip Chip Geometry Customization
  • Size Specific Chainstay Lengths
  • 130mm Travel DW-Link Suspension
  • Trunnion Mounted Fox Float X Rear Shock
  • Fox Factory E-MTB 36 29" 44mm Offset GRIP2 150mm
  • Trail gripping Maxxis Dissector Tires
  • Full-size water bottle fits inside the front triangle
  • Pivot's Cable Port System
  • 60 Nm of Torque/ 450 Watts Peak Power
  • Integrated 430 Watt/Hour Battery
  • Superlight System 9.25lbs (4.2kg)
  • 3 Assist Levels + Boost Mode
  • Drag-free pedaling without assist
  • Magnetic Charging Port & Cover
  • Shimano XTR SGS 12-Speed Rear Derailleur
  • Shimano XTR M9100 ISPEC EV 12-Speed Shifter
  • Shimano XTR M9100 10-51t Cassette
  • Shimano CN-M9100 12-Speed Chain
  • Rotor EKAPIC E-MTB 32t Crankset
  • Shimano XTR M9120 4-piston Brakes
  • Galfer 203mm/180mm Rotors
  • Pheonix Race Low Rise Aluminum 780mm Handlebars
  • Pheonix Team Enduro/Trail Stem
  • Fox Factory Series Seatpost 150mm (SM) – 175mm (MD-LG) – 200mm (XL)
  • Phoenix WTB Volt Team Saddle
  • Reynolds Blacklabel 309/289 XC w/Industry Nice Hydra Hub 30mm F 28mmR – 29” / 15x110 F /12x157 R
  • Maxxis Dissector 29” x 2.4” WT, TR, 3C, EXO Maxxterra front and Rear Tyres
Sizing Information
BUILD SPECS
KITTeam XTR
FRAMEShuttle SL
WHEEL SIZE29"
REAR SHOCKFox Factory Float X
FORKFox Factory E-MTB 36 29", 44mm offset, GRIP2 - 150mm
HEADSETPivot Precision Sealed Cartridge
REAR DERShimano XTR SGS 12-Speed
CASSETTEShimano XTR M9100 10-51t
SHIFTERShimano XTR M9100 ISPEC EV 12-Speed
BRAKESShimano XTR M9120 4-piston
CRANKSETROTOR EKAPIC E-MTB 32t
HANDLEBARPhoenix Team Low Rise Carbon -780mm
GRIPSPhoenix Factory Lock-On
STEMPhoenix Team Enduro/Trail
SEATPOSTFox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
SADDLEPhoenix WTB Volt Team (Medium Width)
WHEELSReynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29"
15x110 F/12x157 R
WHEEL MATERIALCarbon
TIRESMaxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
ROTORGalfer Rotor 203mm
Galfer Rotor 180mm
CHAINShimano CN-M9100 12-Speed
Graphics, colors, and specifications are subject to change without prior notification.

GEOMETRY AND SIZING

A bike for every size
Geometry and sizing

High BB

SMMDLGXL
ASeat Tube Length (C-T)36.8 cm39.4 cm43.2 cm47 cm
BTop Tube Length59.7 cm63.1 cm64.5 cm65.9 cm
CHead Tube Length9.5 cm11.2 cm11.7 cm13 cm
DHead Tube Angle65.5°65.5°65.5°65.4°
ESeat Tube Angle (Eff.)76.5°76.5°76.5°77.2°
FChainstay Length43 cm43 cm43.2 cm43.6 cm
GBottom Bracket Height35.2 cm35.2 cm35.2 cm35.2 cm
HBottom Bracket Drop2.14 cm2.13 cm2.12 cm2.12 cm
IStandover67.4 cm67.7 cm68.2 cm68.7 cm
JWheelbase118.5 cm122.2 cm123.9 cm127.1 cm
Stack60.7 cm62.2 cm62.6 cm63.8 cm
Reach43.9 cm46.9 cm48.2 cm50.4 cm


Low BB

SMMDLGXL
ASeat Tube Length (C-T)36.8 cm39.4 cm43.2 cm47 cm
BTop Tube Length59.8 cm63.2 cm64.6 cm66 cm
CHead Tube Length9.5 cm11.2 cm11.7 cm13 cm
DHead Tube Angle65°65°65°65°
ESeat Tube Angle (Eff.)76°76°76°76.8°
FChainstay Length43.2 cm43.2 cm43.4 cm43.8 cm
GBottom Bracket Height34.7 cm34.7 cm34.7 cm34.7 cm
HBottom Bracket Drop2.7 cm2.7 cm2.7 cm2.7 cm
IStandover66.5 cm66.8 cm67.4 cm67.8 cm
JWheelbase118.6 cm122.3 cm124 cm127.2 cm
Stack61 cm62.6 cm63 cm64.2 cm
Reach43.5 cm46.5 cm47.8 cm50 cm
