Superior

ROCK MACHINE STORM E70 RED

£2,399.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

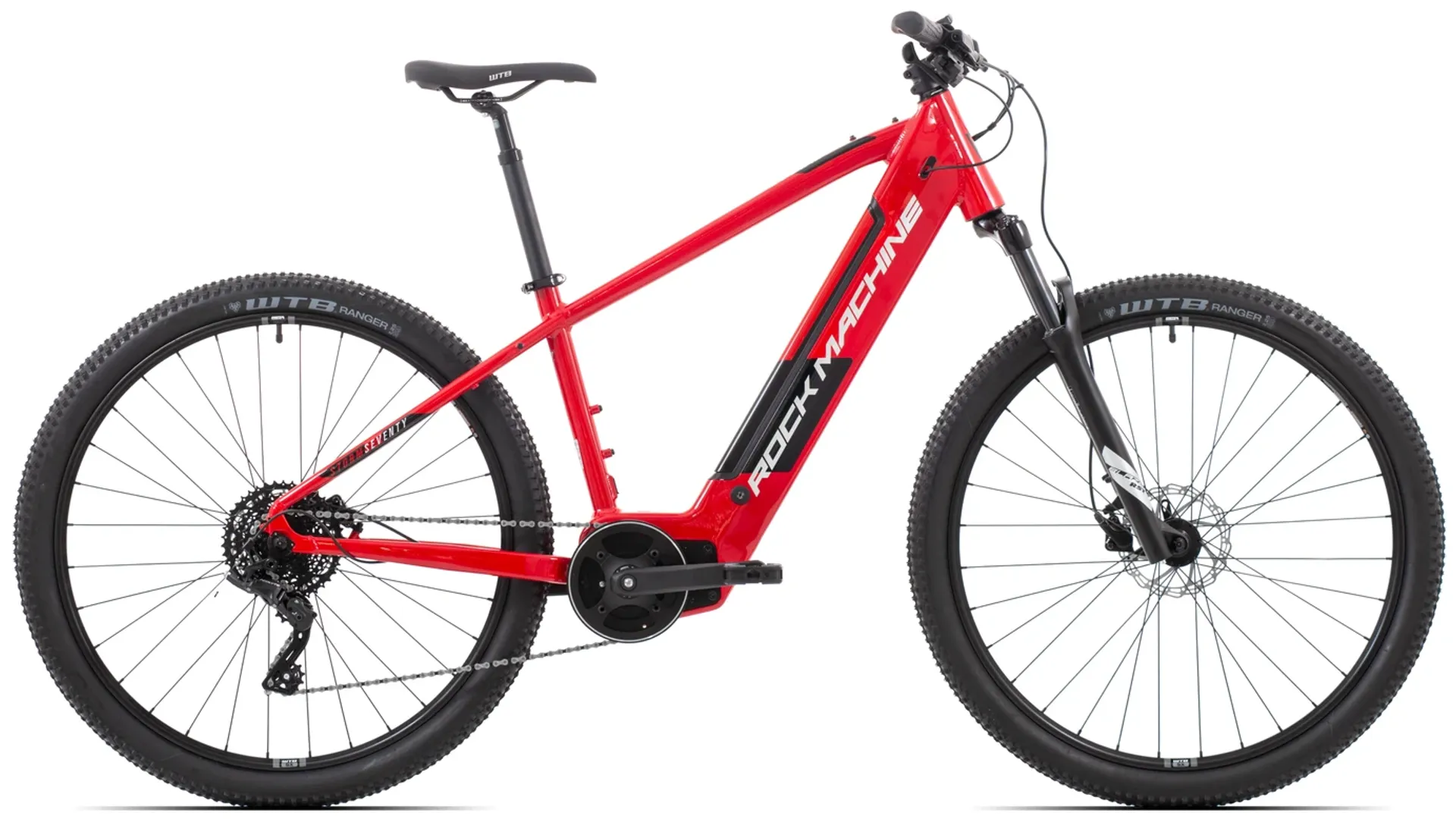

ROCK MACHINE STORM E70 RED

Season:2022

Brand:Superior

Code:CWROCK0002

The Rock Machine Storm INT e70-29, A modern and design-perfect 29″ e-bike with a 90Nm Sport Drive mid-motor and 500wh battery. Whether you’re looking for an e-bike for commuting, shopping or trips, the Storm INT e70 is a excellent choice. The comfort and safety elements include lockable suspension forks, 2.25“ WTB tyres with a universal fast pattern, andTektro Disc Brakes. The possibility to mount a cargo rack, a safety lock, a kickstand or mudguards. The Storm a perfect pal in everyday commuting and weekend sports trips or touring.

NEW frame design with Fun Ride Geometry, Advanced battery integration, improved control, and total comfort. All of these aspects define the Storm INT E70 which houses the ultimate engine. In its 4th generation the powerful Sportdrive motor kicks out 90nm with a battery capacity of 500wh. This ensures a range over 100km but with incredible punch on the climbs.

Technical Information

Specification: Rock Machine Storm INT e70-29

BASE INFO

E-SYSTEMSPORT DRIVE
DISTANCE90 Km
MAX. TORQUE70 Nm continuous, 90 Nm peak

E- BIKE PARTS

MOTORSPORT DRIVE middle motor MD250S
CHARGERSPORT DRIVE charger, 36V/2A, charging time up to 7,5 hours
BATTERYSPORT DRIVE fully integrated downtube battery, 36V, 500 Wh
DISPLAYSPORT DRIVE display 36V

FRAMESET

FRAMEAlloy Al-6061 T6 Custom tubing. Smooth Welding. Fun Ride Geometry. Shark Spine EVO. Sport Drive MID Motor. OLD 135×9. Disc Brake Post Mount, Fender & Kickstand Ready Dropout. Replaceable RD Hanger, Inner Cable Routing
SUSPENSION FORKRST Blaze, 1-1/8\”, 100mm travel
HEADSETFSA Orbit 1.5E No.57B, Zero Stack, 1-1/8\”x1.5\
SUSPENSION TRAVEL FRONT100mm

DRIVETRAIN

GEAR RANGE1×8, 12-42, 350%
SHIFTERS RIGHTmicroSHIFT ACOLYTE SL-M7180-R, 8-speed
REAR DERAILLEURmicroSHIFT ACOLYTE RD-M5185M
CRANKSETWheel Top ED2L, 42T
CHAINRING38T
CASSETTEmicroSHIFT ACOLYTE CS-H083A, 12-42T
CHAINKMC e8S

BRAKING SYSTEM

BRAKE FRONTAlhonga HJ-OD07, Hydraulic disc brake
ROTOR FRONTALHONGA HJDXR 1606, 160mm
BRAKE REARAlhonga HJ-OD07, Hydraulic disc brake
ROTOR REARALHONGA HJDXR 1606, 160mm

WHEELS

HUB FRONTONE1 KTMD7F, 32H, M9x100x108, QR Type
RIM FRONTWTB SX19, 32H
TYRE FRONTWTB Nineline Comp, 29×2.25\”, Reflective Stripe
HUB REARONE1 KTK68R, 32H, M10x135, CASSETE, QR Type
RIM REARWTB SX19, 32H
TYRE REARWTB Nineline Comp, 29×2.25\”, Reflective Stripe
SPOKESSapim Galvanized Black

COCKPIT

STEMONE1 TDS-C342 Alloy, 31.8mm, +3°
HANDLEBARONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 720mm, 31.8mm
GRIPSVelo ERGO

PARTS

SADDLEWTB COMFORT WIDE
SEATPOSTONE1 Alloy, SP S405, 30.9mm
PEDALSBall bearing, with sand non slip inlay and reflector
Sizing Information

Geometry

FRAME SIZEML
WHEEL SIZE2929
BBDBB DROP (mm)6060
ASEAT TUBE LENGTH (mm)432473
BEFFECTIVE TOP TUBE LENGTH (mm)613644
SSTACK HEIGHT (mm)669669
RREACH (mm)428459
CSEAT TUBE ANGLE74,574,5
DHEAD TUBE ANGLE6767
RCREAR CENTER (mm)476476
GHEAD TUBE LENGTH (mm)180180
FWHEELBASE (mm)12121243
STEM (mm)4545
HANDLEBAR (mm)720/R25720/R25
CRANKSET (mm)170170
Seatpost (mm)350350
