EnviLiv Advanced SL 0-Red Prism
EnviLiv Advanced SL 0-Red Prism
Liv

EnviLiv Advanced SL 0-Red Prism

£10,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

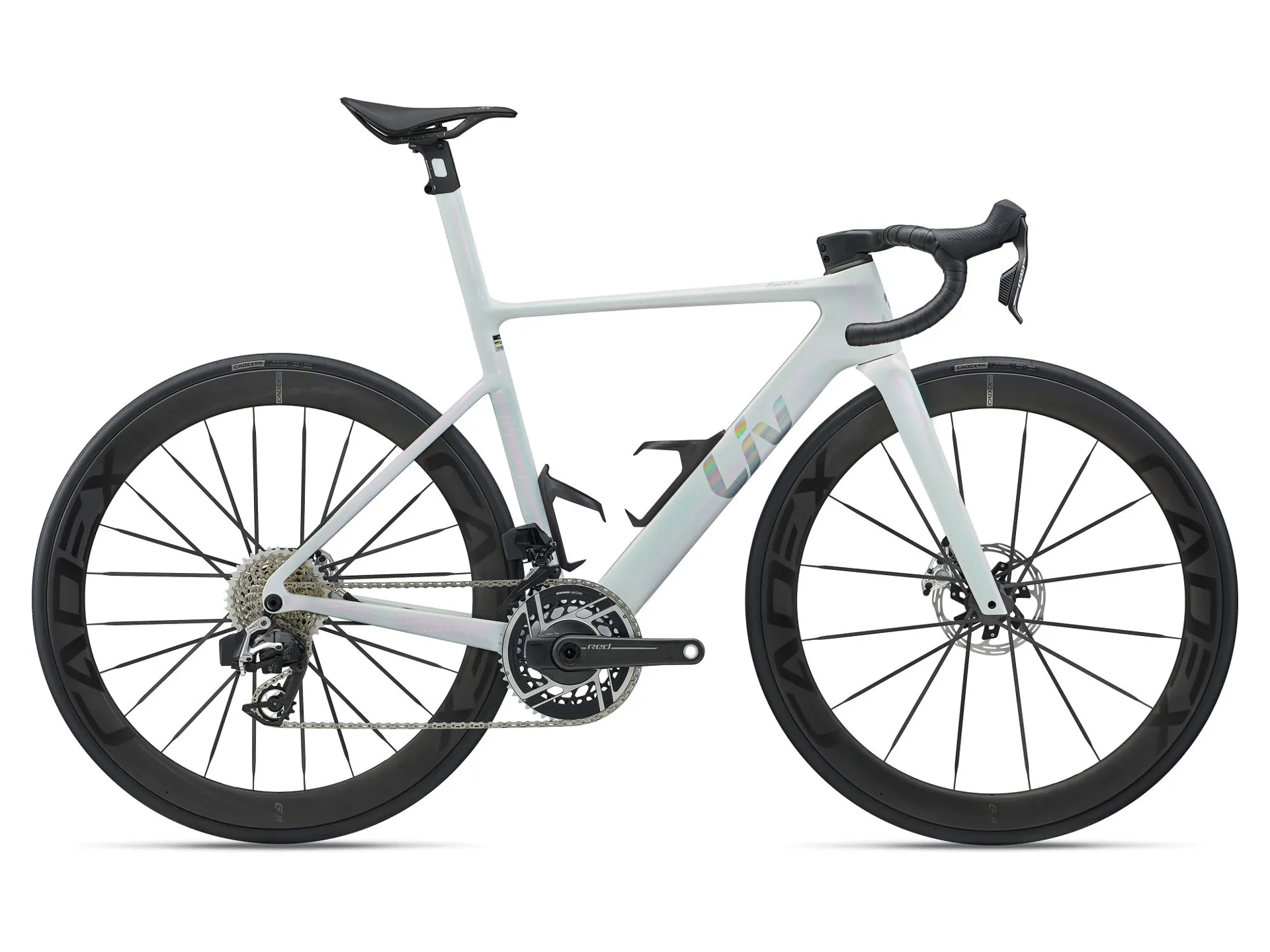

EnviLiv Advanced SL 0-Red Prism

Season:2027

Brand:Liv

Code:9036017Prism

For WorldTour sprinters and high-speed triathletes who know that every second counts, the EnviLiv Advanced SL was made to overtake competitors, surpass expectations, and transcend reality. Designed with next-level, full-system integration for refined aerodynamics and reduced weight, this is our fastest, most efficient, most ambitious EnviLiv to date.

Race-Tuned Efficiency

Reengineered for lighter weight and greater efficiency, the all-new EnviLiv Advanced SL introduces an integrated seatpost (ISP) design that eliminates traditional seatpost hardware, reducing overall mass while enhancing ride feel through increased compliance and vibration damping. This is the first time ISP technology appears on the EnviLiv platform, bringing proven WorldTour performance benefits to Liv’s most advanced aero race bike.

System-Integrated Aerodynamics

The EnviLiv Advanced SL is designed as a complete aerodynamic system, with every component working together to reduce drag at race speed. From the aero frameset to the one-piece Liv Contact SLR Aero cockpit, wheelsystems, and tires, each element is integrated to optimize airflow across the entire bike. The result is aerodynamic performance that’s realized not in isolation, but as a unified system built for real-world racing.

omposed Control

Lowered seatstays add vertical compliance that smooths road vibration and improves aerodynamic efficiency, keeping the bike composed at speed when the road gets rough. With clearance for tires up to 32mm, the EnviLiv Advanced SL delivers added confidence across variable surfaces—without compromising precision, speed, or its race-ready character
Technical Information

Specifications

  • Sizes
    XXS, XS, S, M, L
  • Colours
    Prism Pearl

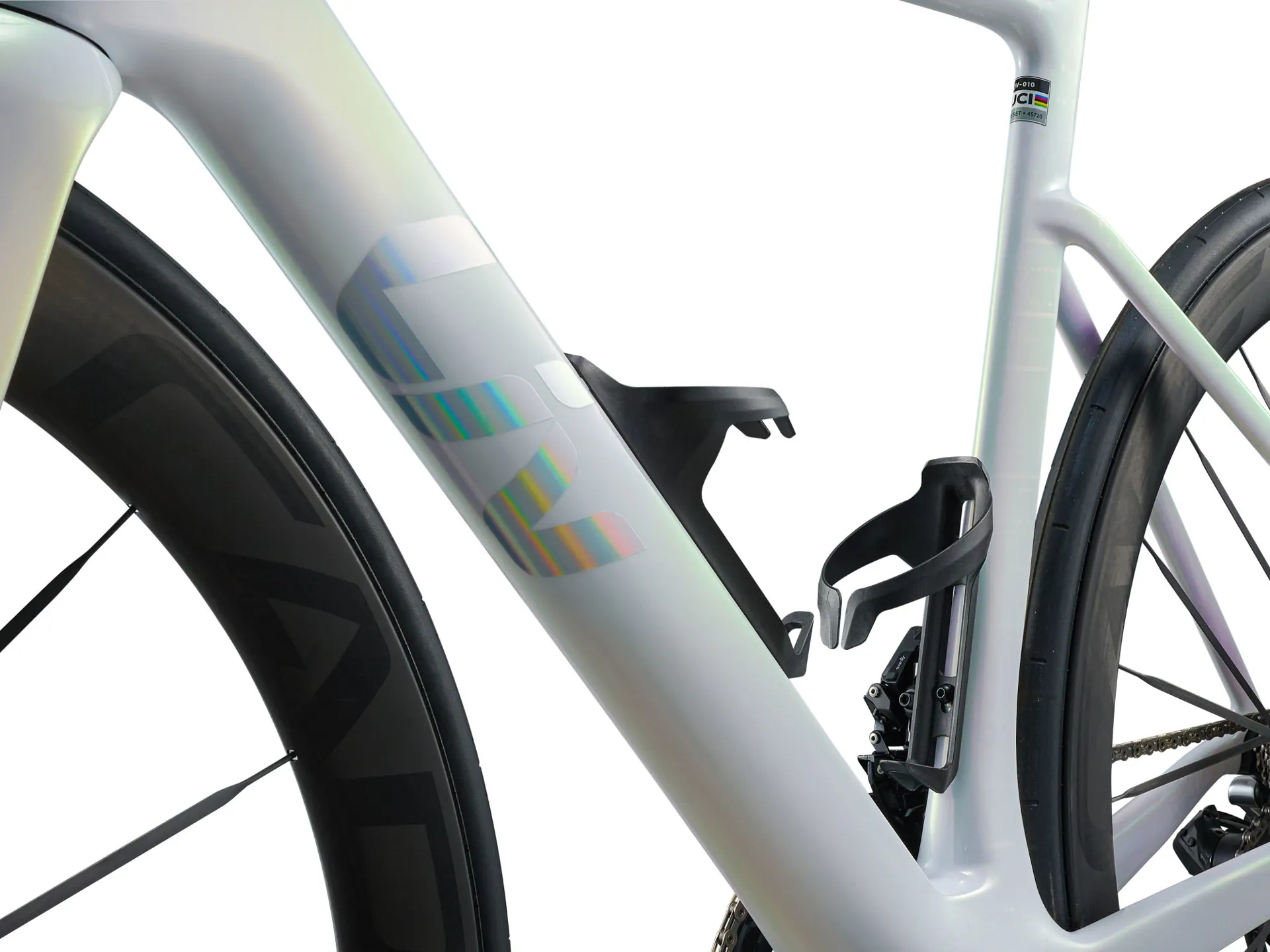

  • Frame
    Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fork
    Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

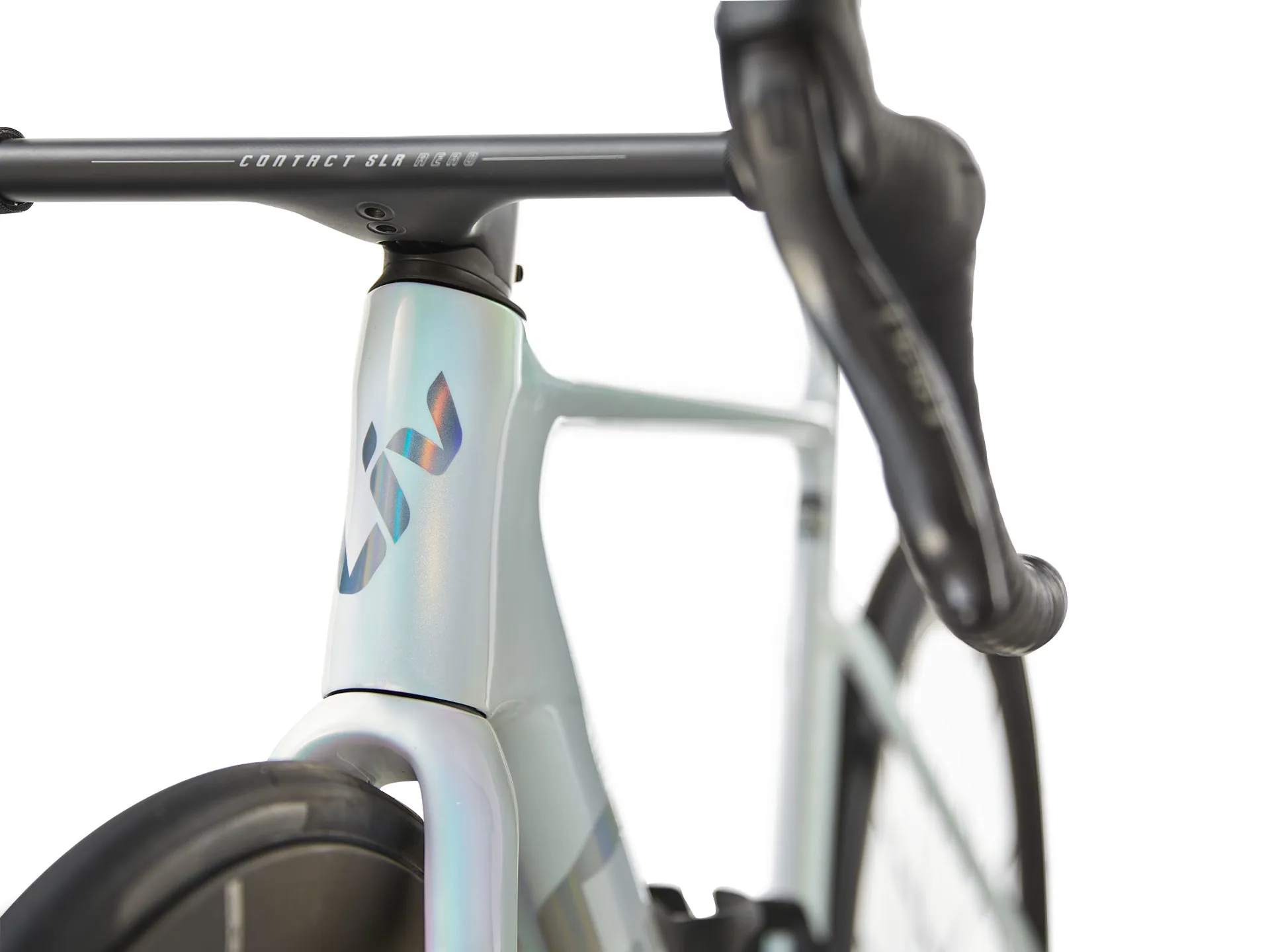

  • Handlebar
    Liv Contact SLR 0 Aero Integrated, 31.8mm, 72mm reach, 125mm drop XXS: 340/360mm, XS: 340/360mm, S: 360/380mm, M: 370/400mm, L: 390/420mm
  • Stem
    Liv Contact SLR 0 Aero Integrated, -10-degree XXS: 80mm, XS: 80mm, S: 90mm, M: 100mm, L: 110mm
  • Seatpost
    Advanced SL-grade composite, integrated design, -5/+15mm offset
  • Saddle
    CADEX Amp 155
  • Shifters
    SRAM RED AXS HRD
  • Front Derailleur
    SRAM RED AXS FD-RED-E-E1
  • Rear Derailleur
    SRAM RED AXS FD-RED-E-E1
  • Brakes
    SRAM RED eTap hydraulic, PaceLine X rotors [F] 160mm, [R] 140mm
  • Brake Levers
    SRAM RED AXS HRD
  • Cassette
    SRAM RED, 12-speed, 10x36
  • Chain
    SRAM RED E1 CN-RED-E1

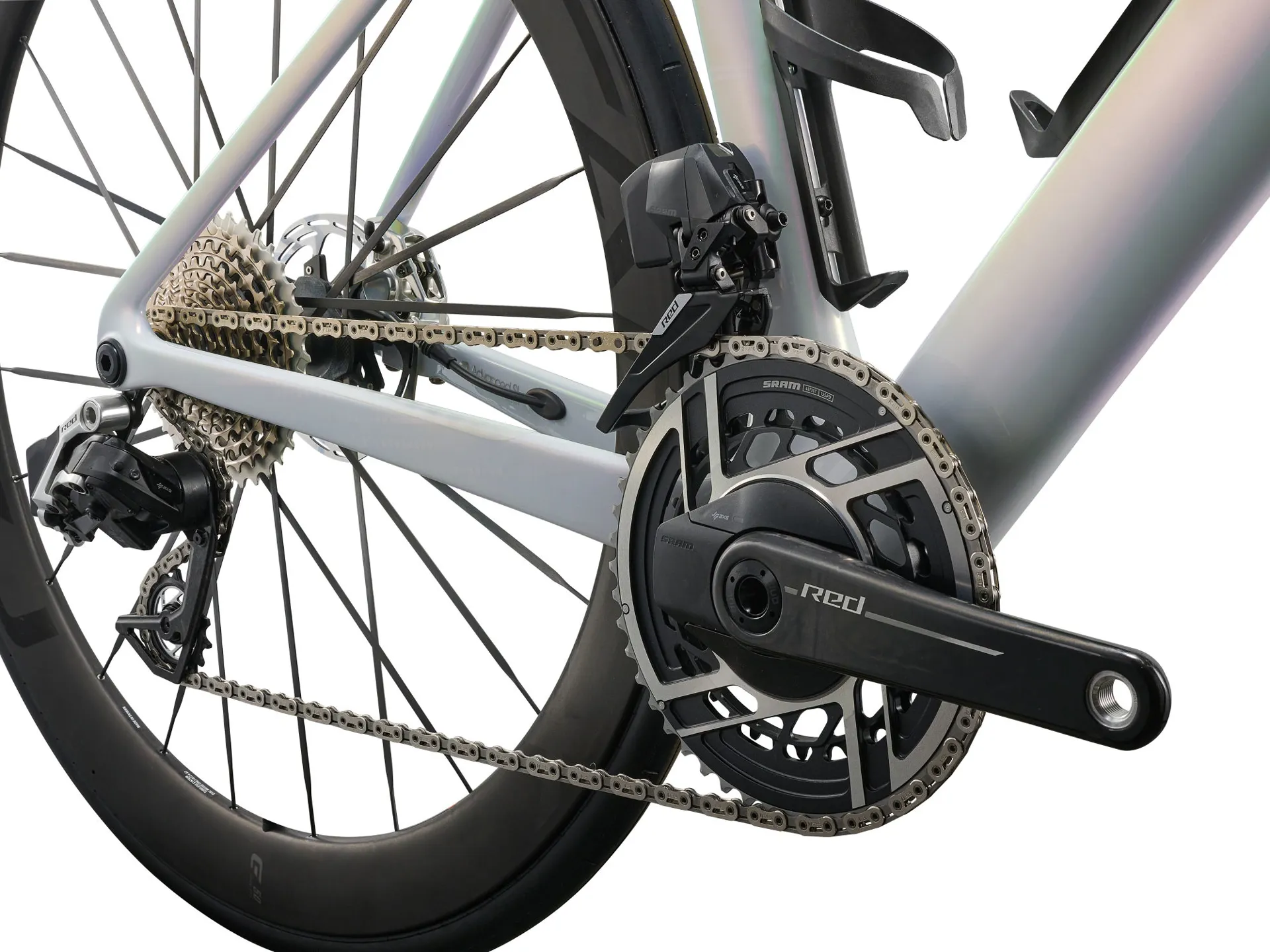

  • Crankset
    SRAM RED AXS, 35/48 with power meter XXS: 160mm, XS: 165mm, S: 165mm, M: 170mm, L: 170mm
  • Bottom Bracket
    SRAM DUB ceramic, press fit
  • Rims
    CADEX Max 50 WheelSystem, [F] 50mm, [R] 50mm
  • Hubs
    [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, ceramic bearings [R] CADEX R3-C48 Aero Hub, 48T ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    CADEX Super Aero Carbon
  • Tyres
    CADEX Aero, tubeless, 700x28c, folding
Sizing Information

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

    • XXS
      140 cm  to 160 cm
    • XS
      152 cm  to 166 cm
    • S
      158 cm  to 172 cm
    • M
      164 cm  to 178 cm
    • L
      170 cm  to 184 cm


XXSXSSML
ASeat Tube Length (MM) 650 680 710 740 770
BSeat Tube Angle 75.0° 75.0° 74.5° 74.0° 73.5°
CTop Tube Length (MM) 504 514 526 541 560
DHead Tube Length (MM) 100 115 130 150 170
EHead Tube Angle 70.0° 71.0° 72.0° 72.5° 72.5°
FFork Rake (MM) 49 49 49 49 49
GTrail (MM) 73.2 66.8 60.4 57.2 57.2
HWheelbase (MM) 969 974 977 984 999
IChain Stay Length (MM) 405 405 405 405 405
JBottom Bracket Drop (MM) 73 66 60 57 57
KStack (MM) 494 511 527 547 566
LReach (MM) 365 372 377 382 392
MStand Over Height (MM) 714 732 760 786 814
OStem Length (MM) 80 80 90 100 110
PCrank Length (MM) 160 165 165 170 170
