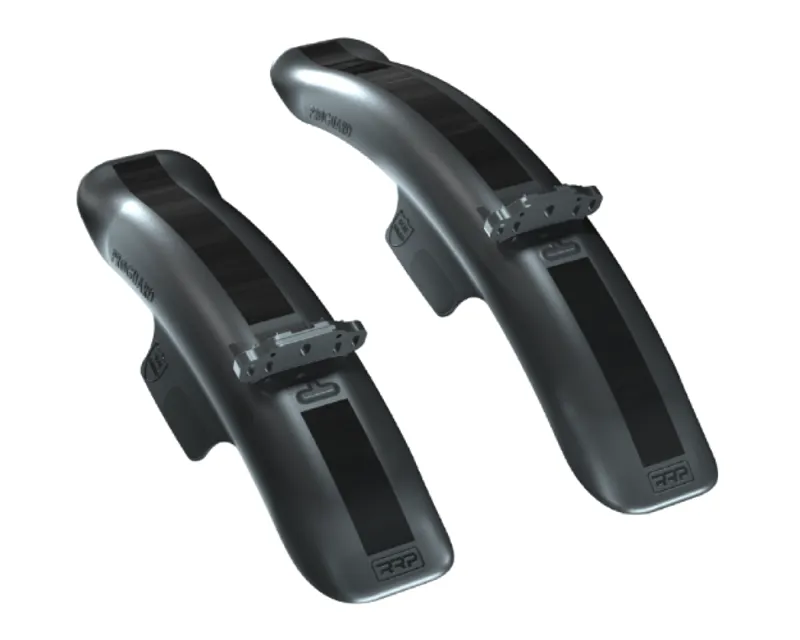

ProGuard Bolt-on Black

We say: These are our favourite front guards if you have a bolt on compatible fork arch. The small size is fine for about 3 weeks of the year, but the larger size is what you want if you're widing offroad in the slop and want to be keep the dirt out of your eyes. It's quite a lot longer, front and back, than the large Fox Fender and gives much better protection.

Tey say: Proguard bolt-on is the first large direct-mount mudguard of it's type. It offers outstanding protection from mud and spray, and provides a slick factory look thanks to not requiring zip ties or velcro straps to secure it in place.

The perfect guard for enduro or downhill racers and essential for weekend warriors looking for the very best protection whilst maximising tyre clearance and reducing the mud clogging issues seen with other mudguards of this style.

• 2 sizes: standard offers high levels of protection. Mini is ideal for all year round mudguard offering good protection thats more descreet
• easy to install or remove with no zip ties or velcro straps
• height adjustability by 6mm and angle adjustability for better fit if needed via 2 tilt brackets supplied
• 2 thick rubber pads on the sides protect your forks
• matte textured finish with gloss highlights, plus sticker recess for easy fit and sticker protection
• long front to sheild from high speed mud and spray
• smaller turn down at front for better tyre clearance and to reduce mud blockages
• long rear with flick design offers more protection especially during cornering
• seal shield increases protection and extends fork service intervals
• made with rrp's unique polypropylene mix which gives greatâflexibility, durability and strength
• standard: 130g, mini: 104g

COMPATIBILITY

WHEELS:

26” 27.5” 29”

TYRES:

up to a 3” tyre

BRAKE / OFFSET:

MINIMUM 44mm

HUB:

STD & BOOST

FORKS:

This direct mount mudguard is designed for the forks listed below which must be:
DISC BRAKE ONLY WITH THREADED HOLES

^*ALWAYS CHECK BOTTOM OUT CLEARANCE BEFORE USE AS MANUFACTURERS ARE BRINGING OUT WIDER TOP CROWNS (CSU) WHICH MAY NOT CLEAR THE MUDGUARD^*

---

• 2016 > 2021FOX32, 34, 36, 38, 40^(a), 49
• 2022 > onwards FOX34^(b), 36^(c), 38, 40

^(a)2020 FOX 40 (26” or 27.5”) or older needs Adapter Bracket (PGBOF40) – sold separately

^(b)2022 FOX 34 only needs stability bracket if the rear of the brace is hollowed out (bracket not available yet)

^(c) 2022 FOX 36 needs Stability Bracket (supplied)

---

• NEWMARZOCCHIFORKS^(d)(Fox chassis version)

^(d) Z2 forks may not come with threaded holes

---

• 2021ROCKSHOX35^(e)
• 2021ROCKSHOXRecon^(e)
• 2021ROCKSHOXParagon^(e)

^(e)use the SR Suntour M6 centre bolt

---

• 2019OHLINSRXF34, RXF36, RXF38^(f), DH38^(g)(or older)

^(f)RFX38 requires Stability Bracket (not available yet)

^(g)DH 38 requires Stability Bracket (PGOSB) - sold separately. NOTE: above adapter also fits RXF36 and adds stability

---

• 2019SR SUNTOURFORKS^(h)(or older)

^(h)forks that have an unthreaded straight through hole in the centre of the fork brace needs our SLEEVE PACK (PGBOSP) - sold separately

---

• 2021DVOD1 Diamond Boost⁽ⁱ⁾
• 2021DVOD1 ONYX Boost SC^(j)

⁽ⁱ⁾needs our custom bolt / washer (PGBODVOB)

^(j)needs our custom adapter bracket and custom M4 bolt / washer (PGBODVO)

---
